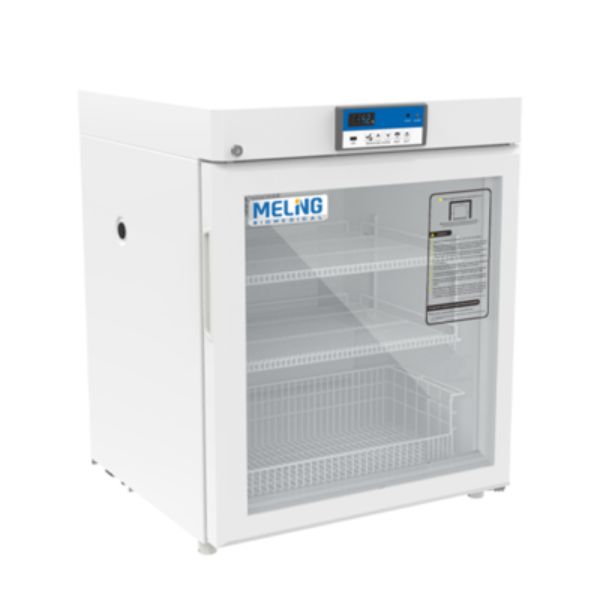

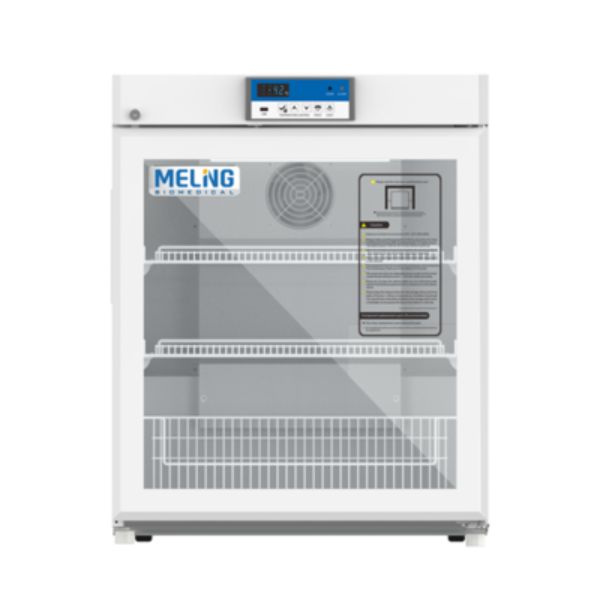

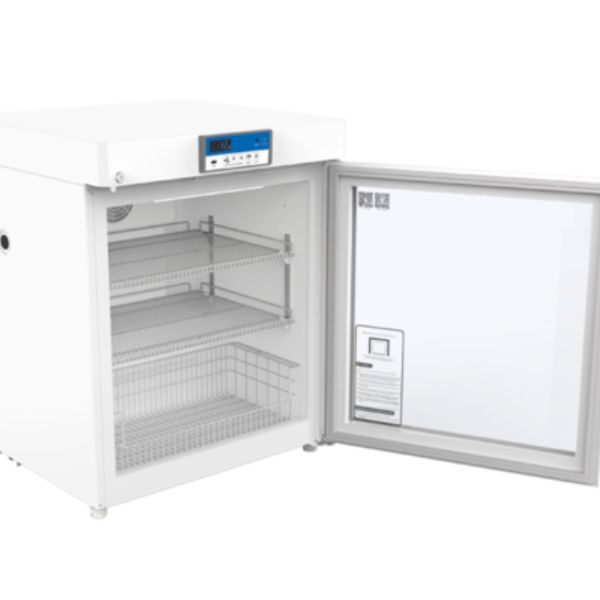

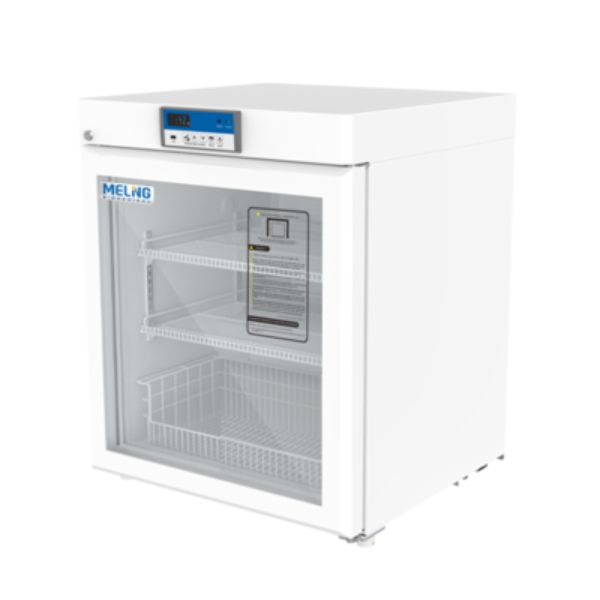

2~8℃ Undercounter Pharmacy/Medical/Vaccine Refrigerator YC-130L

Features

Perfect Audible and Visual Alarms Including High/Low Temperature, High Ambient Temperature, Power Failure, Low Battery, Sensor Error, Door Ajar, Built-In Datalogger USB Failure, Main Board Communication Error, Remote Alarm

The Small Medical Refrigerator With 3high-Quality Steel Wire Shelves, The Shelves Are Adjustable to Any Height for Satisfying Different Requirements

Standard With Build-In USB Datalogger, Remote Alarm Contact and RS485 Interface for Monitor System

1 Cooling Fan Inside, Working While Door Is Closed, Stopped While the Door Is Opened

The CFC-Free Polyurethane Foam Insulating Layer Is Environmentally Friendly

The Electrical Heating Glass Door Filled with Insert Gas Performs Well in Thermal Insulation

The Medical Refrigerator Is Equipped With 2 Sensors. When The Primary Sensor Fails, The Secondary Sensor Will Be Activated Immediately

The Door Is Equipped with a Lock Preventing from Unauthorized Opening and Operation

Scope Of Application
Small Medical Refrigerator YC-130L Suitable for Storage of Biological Products, Vaccines, Drugs, Reagents, and more;
Suitable For Use in Pharmacies, Pharmaceutical Factories, Hospitals, Centers for Disease Prevention & Control, Clinics, Etc.

Access port: 1pc. Ø 25 mm
Ambient temperature: 16-32℃
Cabinet type: Upright
Capacity(L): 130
Casters: 2+2 (leveling feet)
Climate class: N
Compressor: 1pc
Controller: Microprocessor
Cooling method: Air cooling
Cooling performance: 5℃
Data logging/Interval/Memory capacity: USB/Record every 10 minutes / 100,000data
Defrost mode: Automatic
Display: Digital display
Door lock with key: Yes
Door with heater: Yes
Electrical: Power failure, Low battery
External material: PCM
External size(W*D*H)mm: 650*625*810
Inner material: Aluminium plate with spraying/Stainless steel (optional stainless steel)
Insulation thickness(mm): L/R:48,B:50
Internal size(W*D*H)mm: 554*510*588
Lighting: LED
Model: YC-130L
NW/GW(Kgs): 51/56
Package size(W*D*H)mm: 720*703*880
Refrigerant: R600a
Shelves: 3 (coated steel wired shelf)
System: Sensor failure, Door ajar, Built-in USB datalogger failure, Communication failure Accessories
Temperature: High/Low temperature, High ambient temperature
Temperature range: 2~8℃
