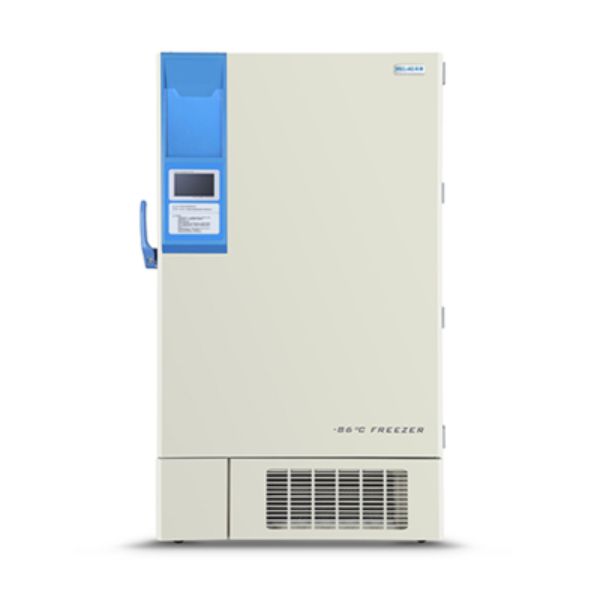

-86℃ Ultra-low Temperature Freezer DW-HL858SA

Features

– Adopted famous Secop compressor and Germany brand EBM fans
– D-form copper tube evaporator for better heating dissipation
– 7”inches LED screen control system has clear display and allows more accurate temperature control

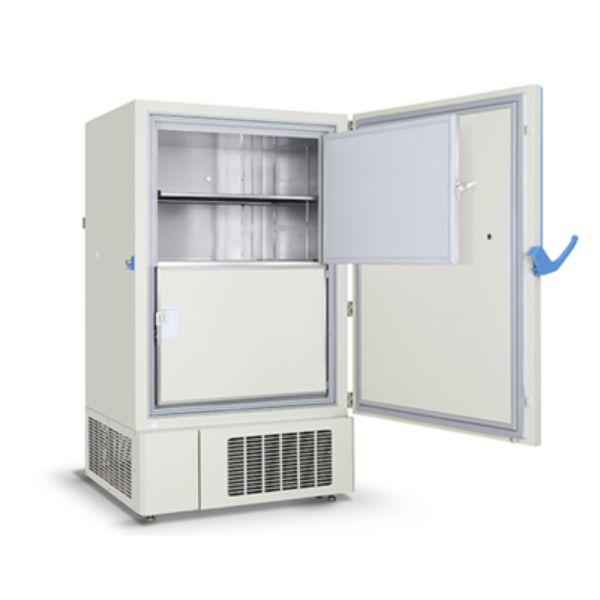

– 2-layers of solid doors with 2 independent inner doors to protect your lab and medical materials in proper temperature
– SPCC steel with powder coating external material and 304 grade stainless steel inner material, exquisite beauty and easy to clean
– Allow storage of inventory 2”box in 660 pieces and inventory 2ml vial in 66000 pieces
– Lockable door and keyboard lock with password to prevent unauthorized operating and access
– Enable machine startup delay, power off protection, and 72 hours battery backup for controller display
– Designed with USB datalogger to record relevant temperature data, which can be downloaded and checked
– Optional temperature recorder, warning lamp, smart temperature monitor system and CO2 back-up system
– Certificate: CE certificate, ISO9001, ISO14001, ISO13485

Contact Form

Description

Access Test Port: 3
Backup Battery: Standard
Cabinet Type: Upright
Capacity (Effective): 858L
Casters: 4 casters with 2 leveling feet
Chart Recorder: Optional
Climatic: N
CO2 Back Up System: Optional
Compressor: 2 pcs
Compressor Brand: Secop (danfoss)
Cooling: Direct cooling
Data Logger: USB
Data Output: USB
Defrost: Manual defrost
Dimensions External (W*D*H,mm): 1217W*1025D*2005H (mm)
Dimensions Internal (W*D*H,mm): 877W*696D*1378H (mm)
Display: Touch screen
Door Lock: Yes
Evaporate: D-form copper tube
Fan Motor: EBM
Inner doors: 4pcs
Insulation: VIP Plus vacuum insulation panel
Insulation Thickness (mm): 130
Inventory 2" Box (pc): 5*5*12+6*5*12=660
Inventory 2ml Vial (pc): 66000
Inventory Rack (Model & Quantity): ZKL304-552B-CT:12 + ZKL304-652B-CT:12
Material (External): High quality steel plates with spraying
Material (Interior): Galvanized steel sheet
Model: DW-HL858SA
Power (Input): 2380W
Power Consumption (kWh/24 hours): 16.5
Rated Current (A): 10.86
Refrigerant: Mixture gas
Sealing Material: MVQ
Shelves: 3pcs
Status Alarm conditions: Visual & Audio
High / low temperature alarm, power failure alarm, low battery alarm, door ajar alarm, filter blocking alarm, system failure alarm
Temp.Range(°C): -40℃~ -86℃
Temperature (Ambient): 16℃ ~ 32℃
Weight (Net/Gross): 390/431 (Kg)
