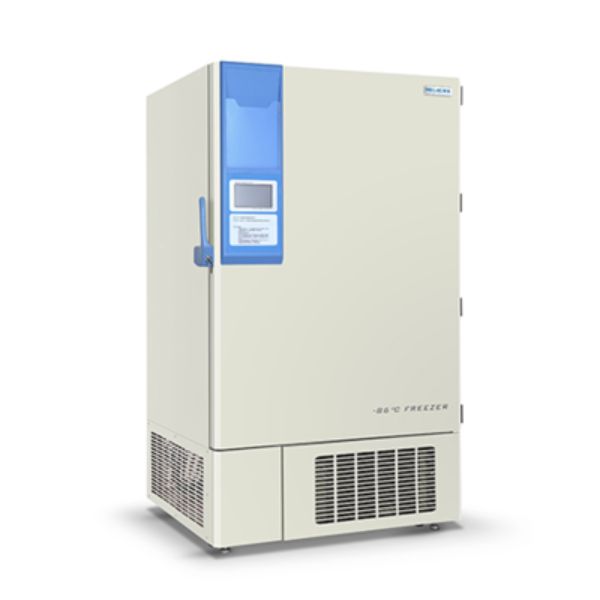

-86℃ Ultra-low Temperature Freezer DW-HL778HC

Features

– Adopted famous SECOP compressor and Germany brand EBM fans
– 7”inches LED screen control system has clear display and allows more accurate temperature control
– Equipped with VIP plus vacuum insulation foaming inside the door for better temperature performance
– Allow storage of inventory 2”box in 600 pieces and inventory 2ml vial in 60000 pieces
– Lockable door and keyboard lock with password to prevent unauthorized operating and access
– Fitted with 4 PCS casters & level feet for easy moving the ultra low temperature freezer
– Enable machine startup delay, power off protection, and 72 hours battery backup for controller display
– Designed with USB datalogger to record relevant temperature data, which can be downloaded and checked
– Optional temperature recorder, warning lamp, smart temperature monitor system and CO2 back-up system
– Certificate: CE certificate, ISO9001, ISO14001,ISO13485

Contact Form

Description

Access Test Port: 3
Backup Battery: Standard
Cabinet Type: Upright
Capacity (Effective): 778L
Casters: 4 casters with 2 leveling feet
Chart Recorder: Optional
Climatic: N
CO2 Back Up System: Optional
Compressor: 2 pcs
Compressor Brand: Secop (danfoss)
Cooling: Direct cooling
Data Logger: USB
Data Output: USB
Defrost: Manual defrost
Dimensions External (W*D*H,mm): 1205W*1025D*1955H (mm)
Dimensions Internal (W*D*H,mm): 865W*696D*1286H (mm)
Display: Touch screen
Door Lock: Yes
Evaporate: D-form copper tube
Fan Motor: EBM

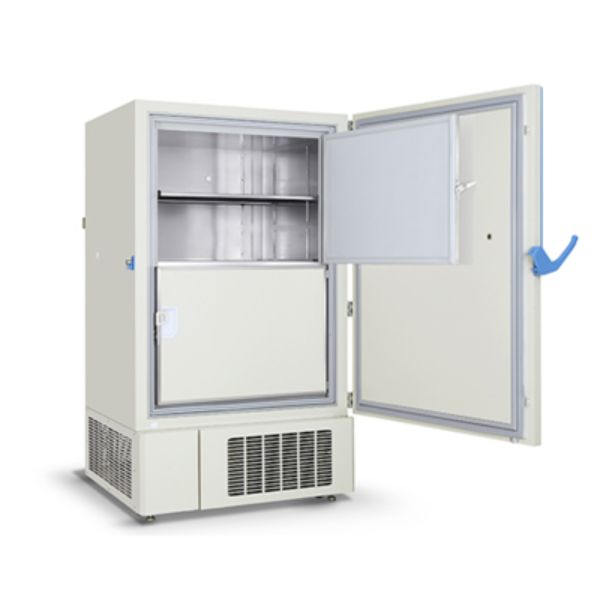

Inner doors: 4pcs
Insulation: VIP Plus vacuum insulation panel
Insulation Thickness (mm): 130
Inventory 2" Box (pc): 5*5*24=600
Inventory 2ml Vial (pc): 60000
Inventory Rack (Model & Quantity): ZKL304-552B-CT:24
Material (External): Cold rolled steel
Material (Interior): Stainless steel
Model: DW-HL778HC
Refrigerant: Hydrocarbon
Sealing Material: MVQ
Shelves: 3pcs
Status Alarm conditions: Visual & Audio
High / low temperature alarm, power failure alarm, low battery alarm, door ajar alarm, filter blocking alarm, system failure alarm
Temp.Range(°C): -40℃~ -86℃
Temperature (Ambient): 16℃ ~ 32℃
Weight (Net/Gross): 365/455 (Kg)
