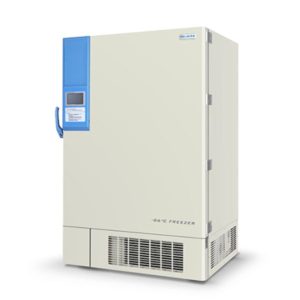

-86℃ Ultra-low Temperature Freezer DW-HL858HC

Features

Adopted famous Secop compressor and Germany brand EBM fans
D-form copper tube evaporator for better heating dissipation
7”inches LED screen control system has clear display and allows more accurate temperature control
2-layers of solid doors with 2 independent inner doors to protect your lab and medical materials in proper temperature
SPCC steel with powder coating external material and 304 grade stainless steel inner material, exquisite beauty and easy to clean
Allow storage of inventory 2”box in 660 pieces and inventory 2ml vial in 66000 pieces
Lockable door and keyboard lock with password to prevent unauthorized operating and access
Enable machine startup delay, power off protection, and 72 hours battery backup for controller display
Designed with USB datalogger to record relevant temperature data, which can be downloaded and checked
Optional temperature recorder, warning lamp, smart temperature monitor system and CO2 back-up system
Certificate: CE certificate, ISO9001, ISO14001, ISO13485

Contact Form

Description

Access Test Port: 3
Backup Battery: Standard
Cabinet Type: Upright
Capacity (Effective): 858L
Casters: 4 casters with 2 leveling feet
Chart Recorder: Optional
Climatic: N
CO2 Back Up System: Optional
Compressor: 2 pcs
Compressor Brand: Secop (danfoss)
Cooling: Direct cooling
Data Logger: USB
Data Output: USB
Defrost: Manual defrost
Dimensions External (W*D*H,mm): 1217W*1025D*1994H (mm)
Dimensions Internal (W*D*H,mm): 877W*696D*1378H (mm)
Display: Touch screen
Door Lock: Yes
Evaporate: D-form copper tube
Fan Motor: EBM
Inner doors: 4pcs
Insulation: VIP Plus vacuum insulation panel
Insulation Thickness (mm): 130
Inventory 2" Box (pc): 5*5*12+6*5*12=660
Inventory 2ml Vial (pc): 66000
Inventory Rack (Model & Quantity): ZKL304-552B-CT:12 + ZKL304-652B-CT:12
Material (External): Cold rolled steel
Material (Interior): Stainless steel
Model: DW-HL858HC
Refrigerant: Hydrocarbon
Sealing Material: MVQ
Shelves: 3pcs
Status Alarm conditions: Visual & Audio
High / low temperature alarm, power failure alarm, low battery alarm, door ajar alarm, filter blocking alarm, system failure alarm
Temp.Range(°C): -40℃~ -86℃
Temperature (Ambient): 16℃ ~ 32℃
Weight (Net/Gross): 390/470 (Kg)
